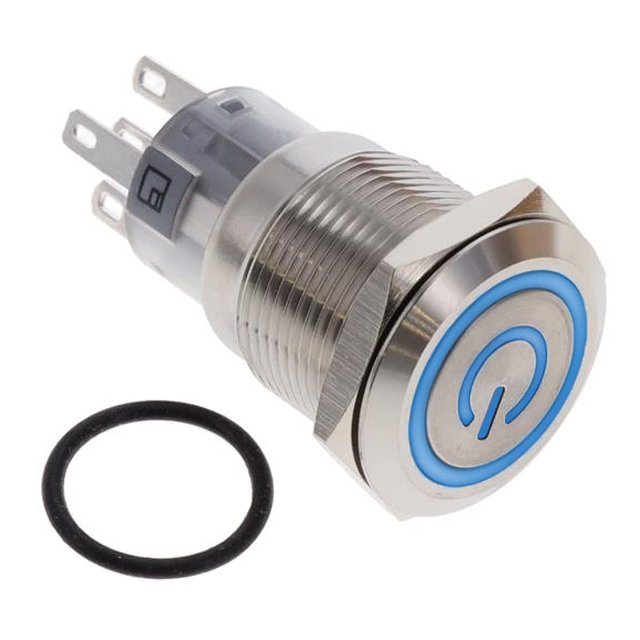

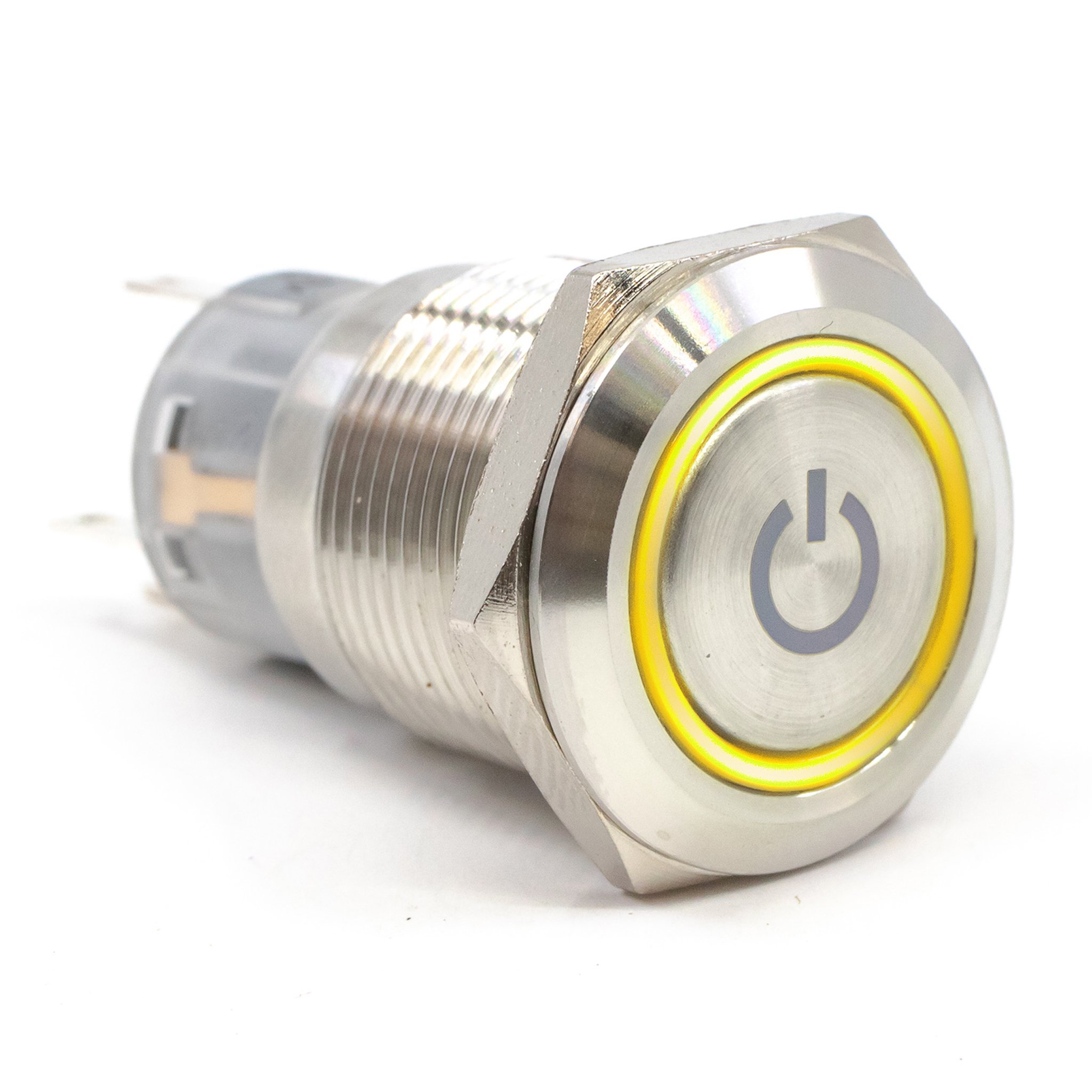

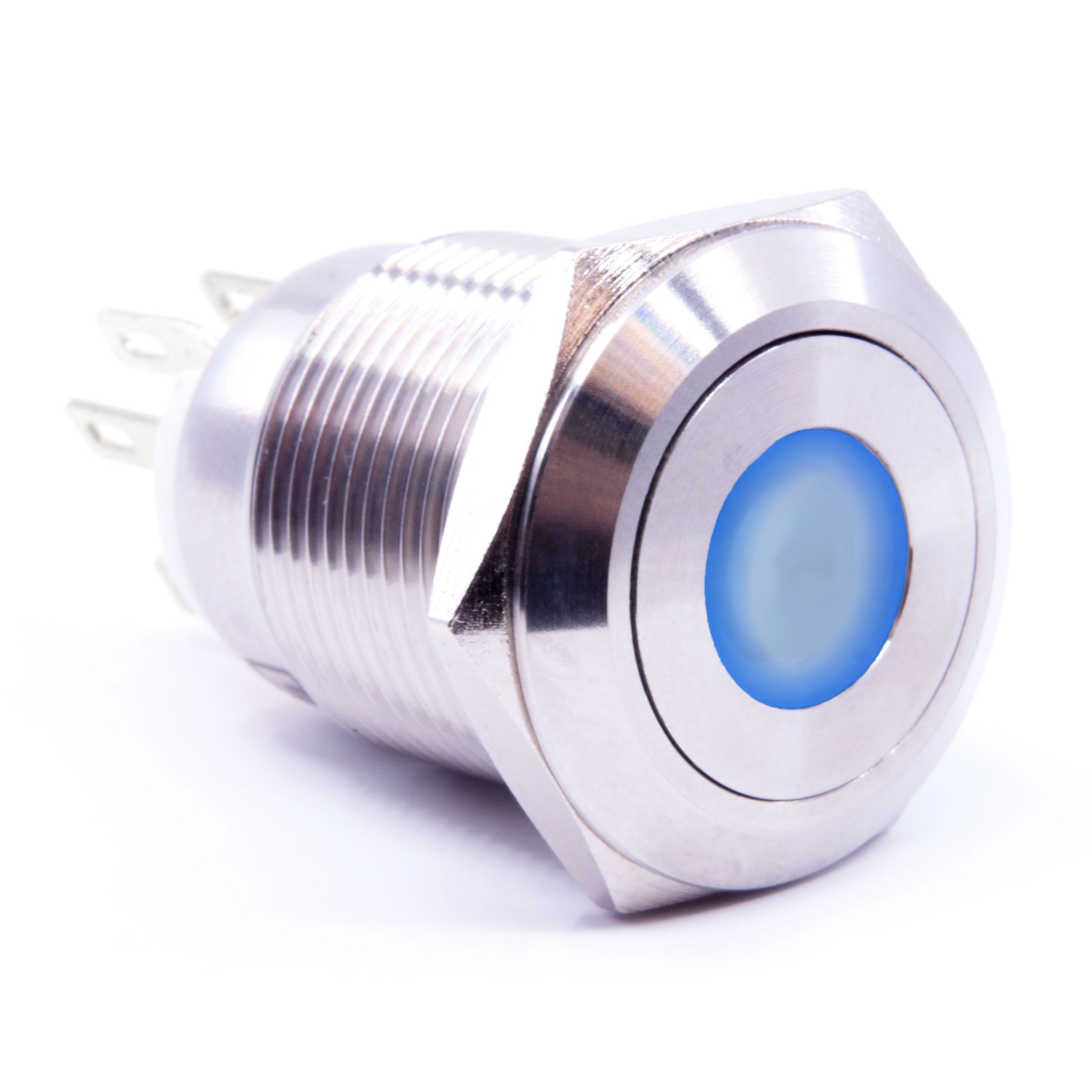

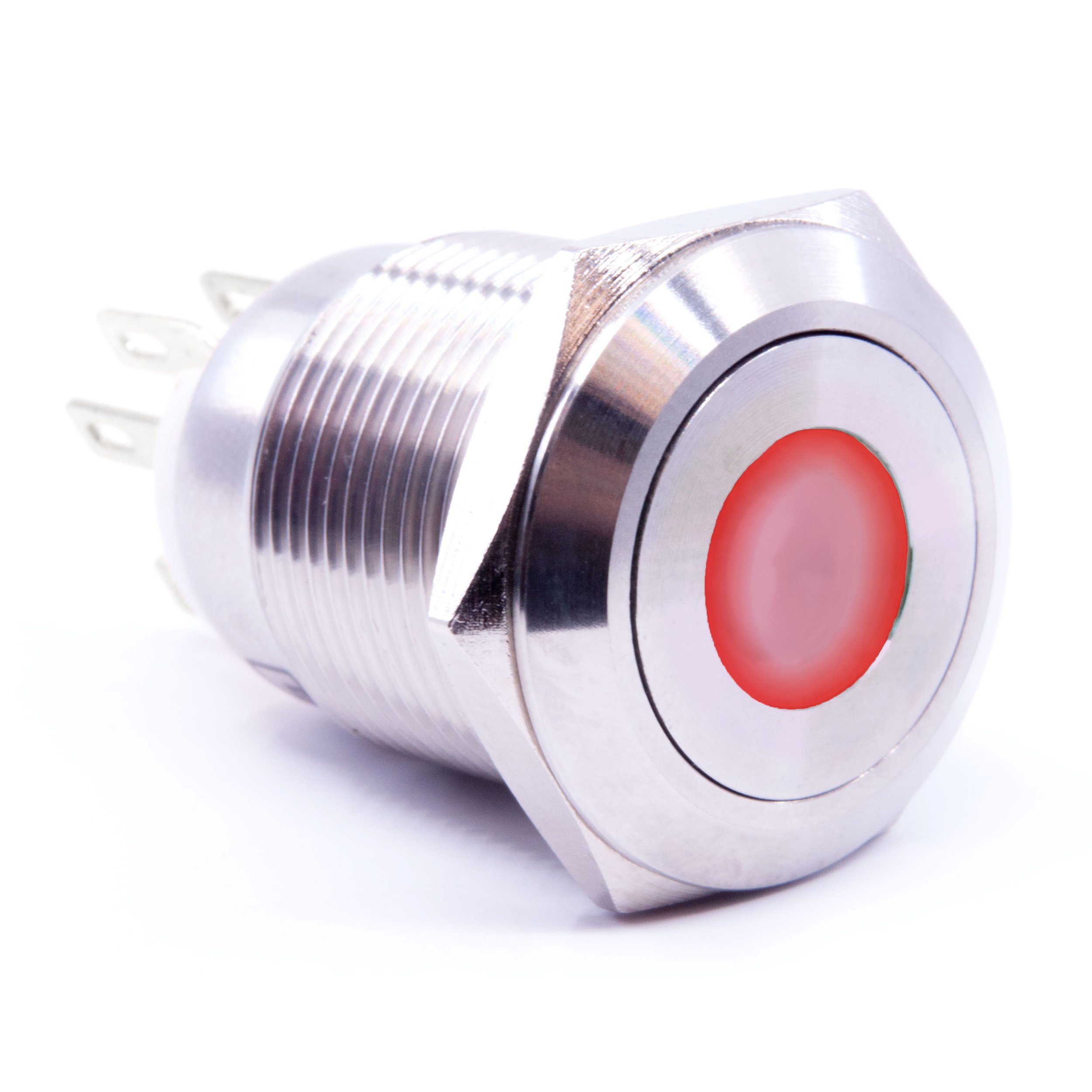

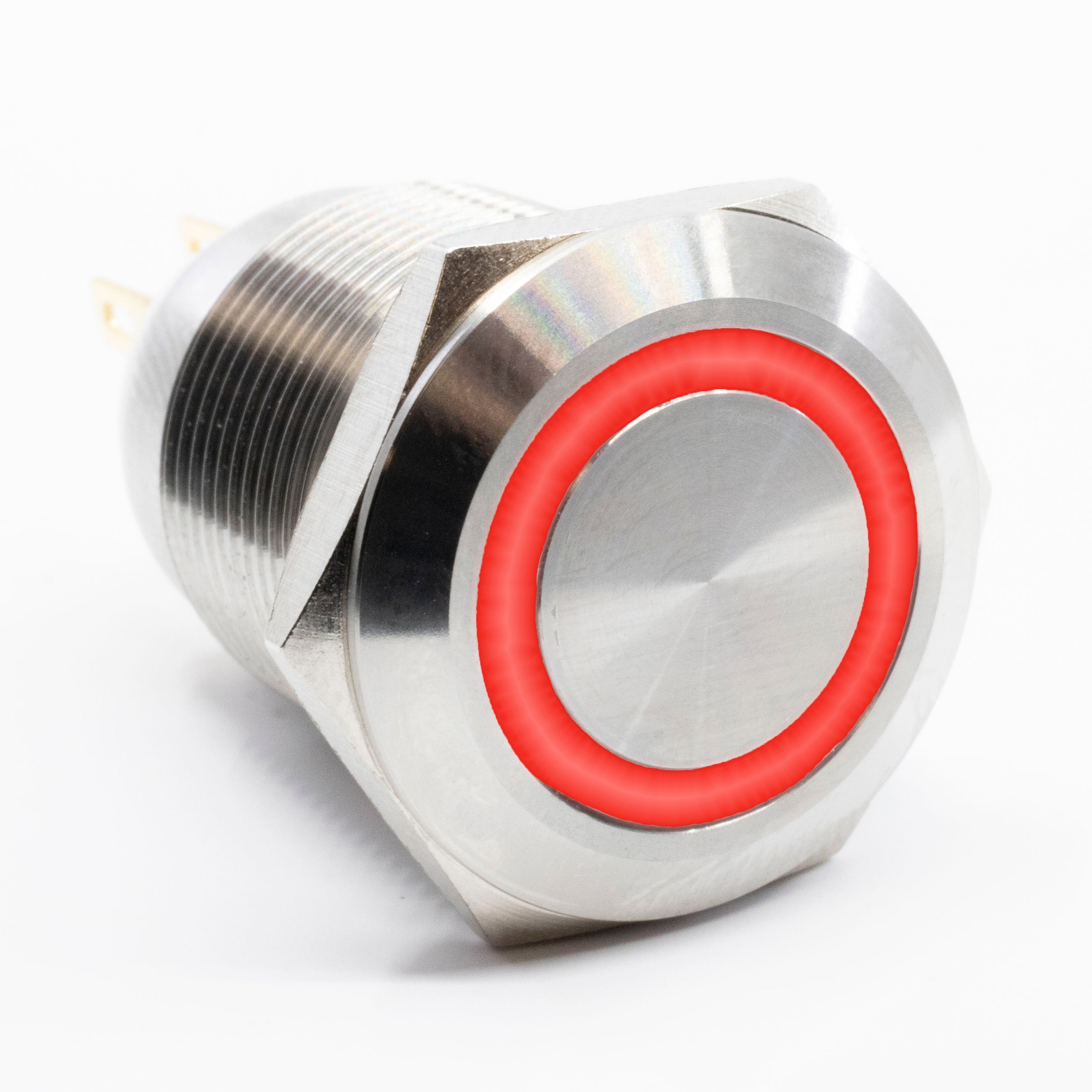

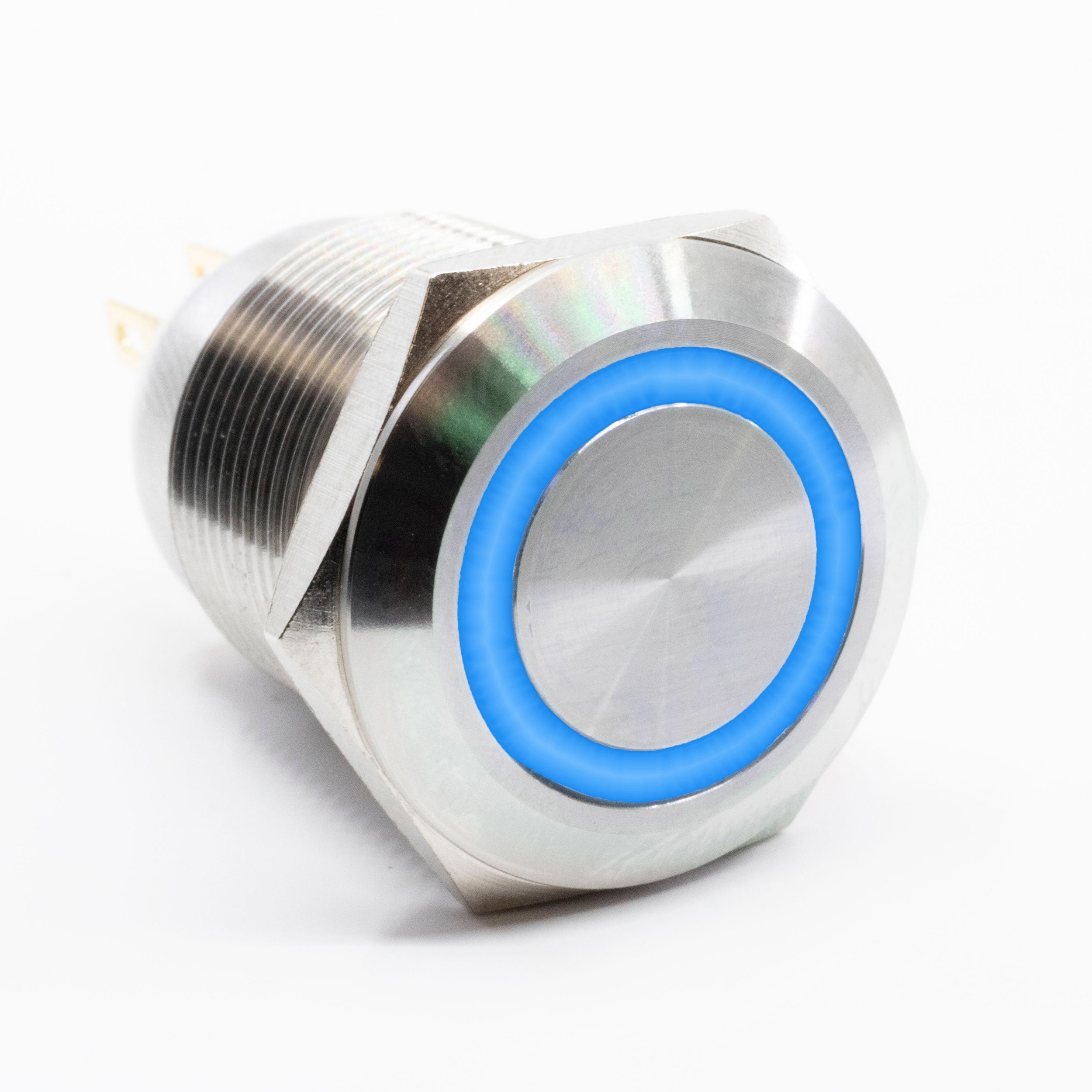

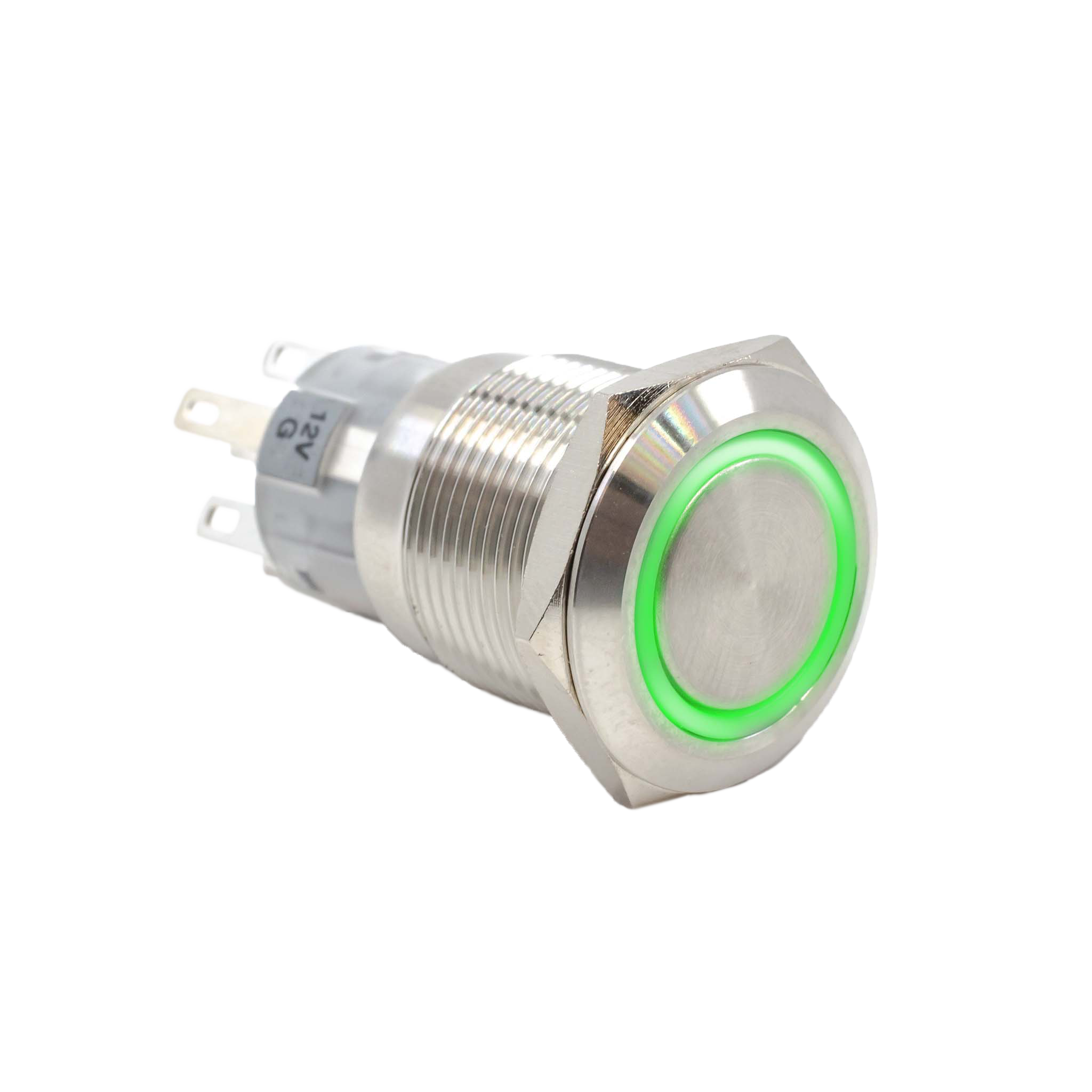

PV4 Series illuminated anti-vandal switches are dust and water resistant to an IP65 rating and meant for a panel cutout size of 19mm in diameter. Featuring multiple actuator options, these switches have a long life expectancy of a million mechanical cycles. They offer multiple illumination colors, including bi-color LED and RGB LED options. Both dot and ring illumination are available, including a graphics option of power symbol etching or illuminated (with ring illumination).

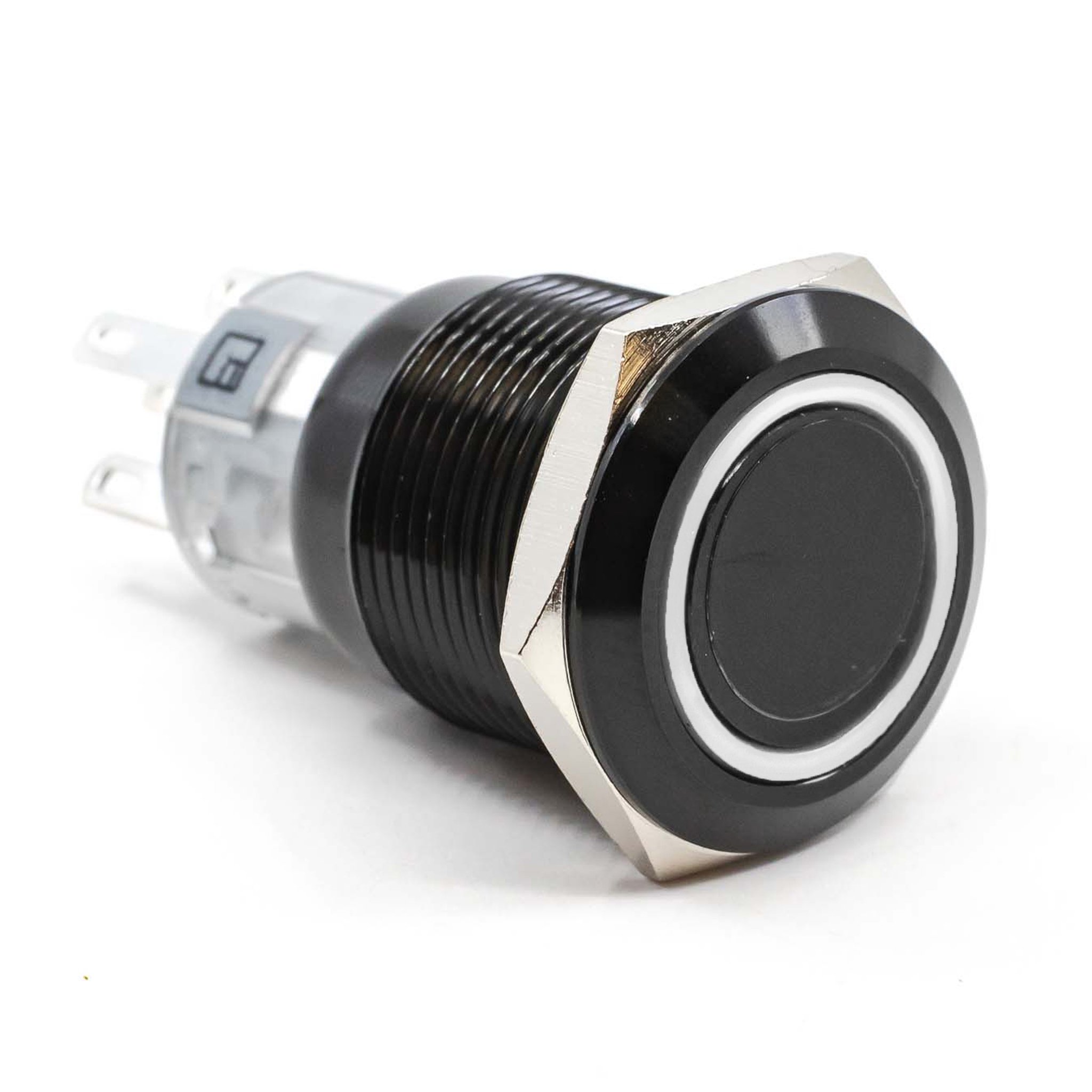

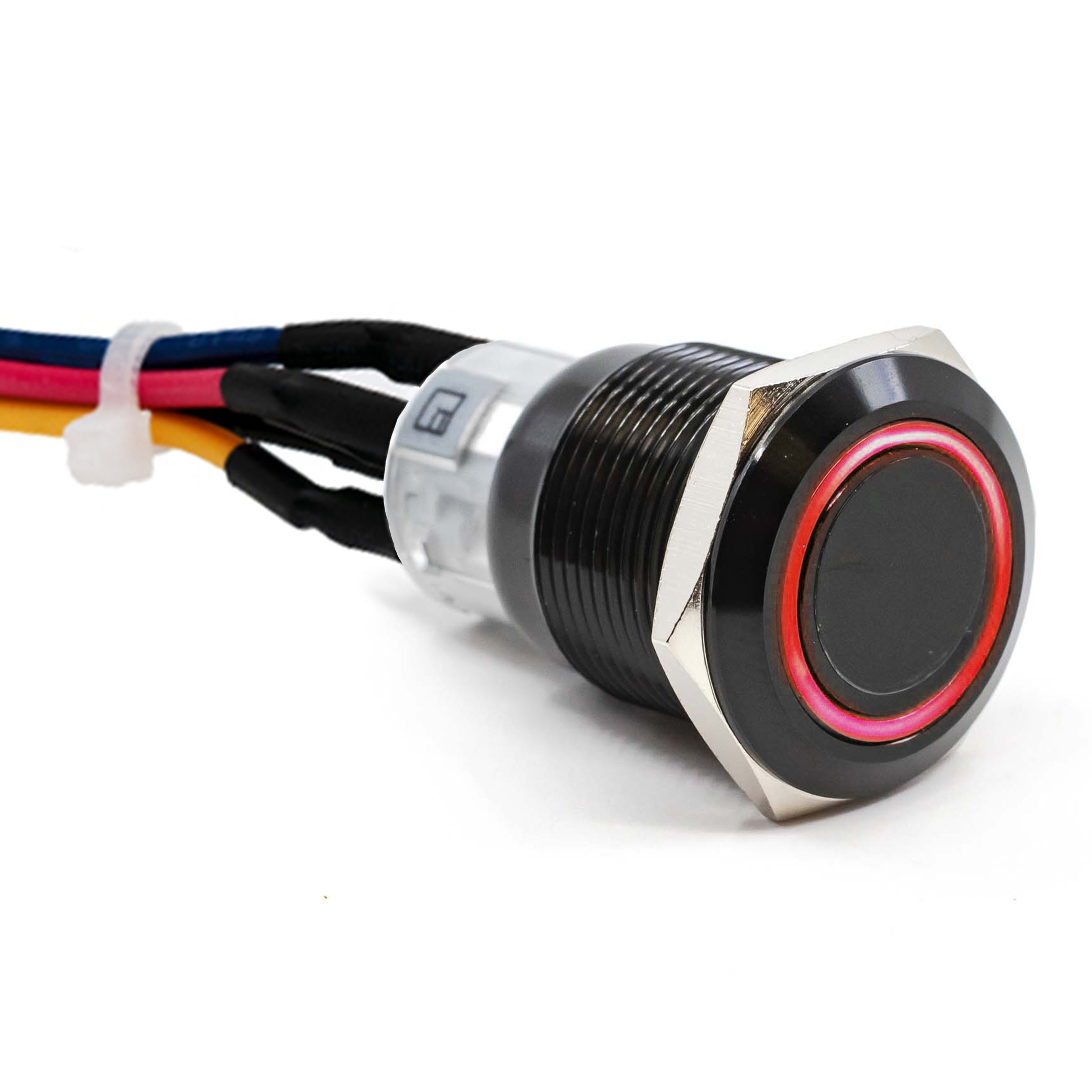

It is available with multiple finishes, including a black anodized finish. Single- or double-pole circuits are also available for performing maintained and momentary functions and double break functions. Standard wire leads are also available. The PV4 Series illuminated, sealed anti-vandal switch is popular for use in:
FEATURES
IP65 rated for dust and moisture protection
19mm diameter panel cutout
Dot and ring illuminated; RGB LED illumination available
1 or 2 poles; maintained (latching), momentary, and double break pushbuttons
Datasheet
