The PVA6 Series illuminated anti-vandal switch offers a long life expectancy, dust and water resistance to an IP67 rating, and ring or power symbol illumination. This tamperproof pushbutton switch has a 16mm panel cutout size. Additional options include a high, high flat or rounded bezel option and your choice of a solder lug or wire lead termination. The wire leads are 500mm long.
The PVA6 Series illuminated anti-vandal switches have electrical ratings of 2A of 36 VDC, mechanical life expectancies up to a million cycles, and they operate in temperatures ranging from -20°C to 70°C. Common applications for the PVA6 Series illuminated anti-vandal switch include:
Audio/visual equipment
Security devices
Industrial control panels
Ticket kiosks
Electrical houseware appliances
Medical equipment
Other devices that require a tamper-resistant design
FEATURES
16mm panel cutout size
IP67 rated for dust and moisture protection

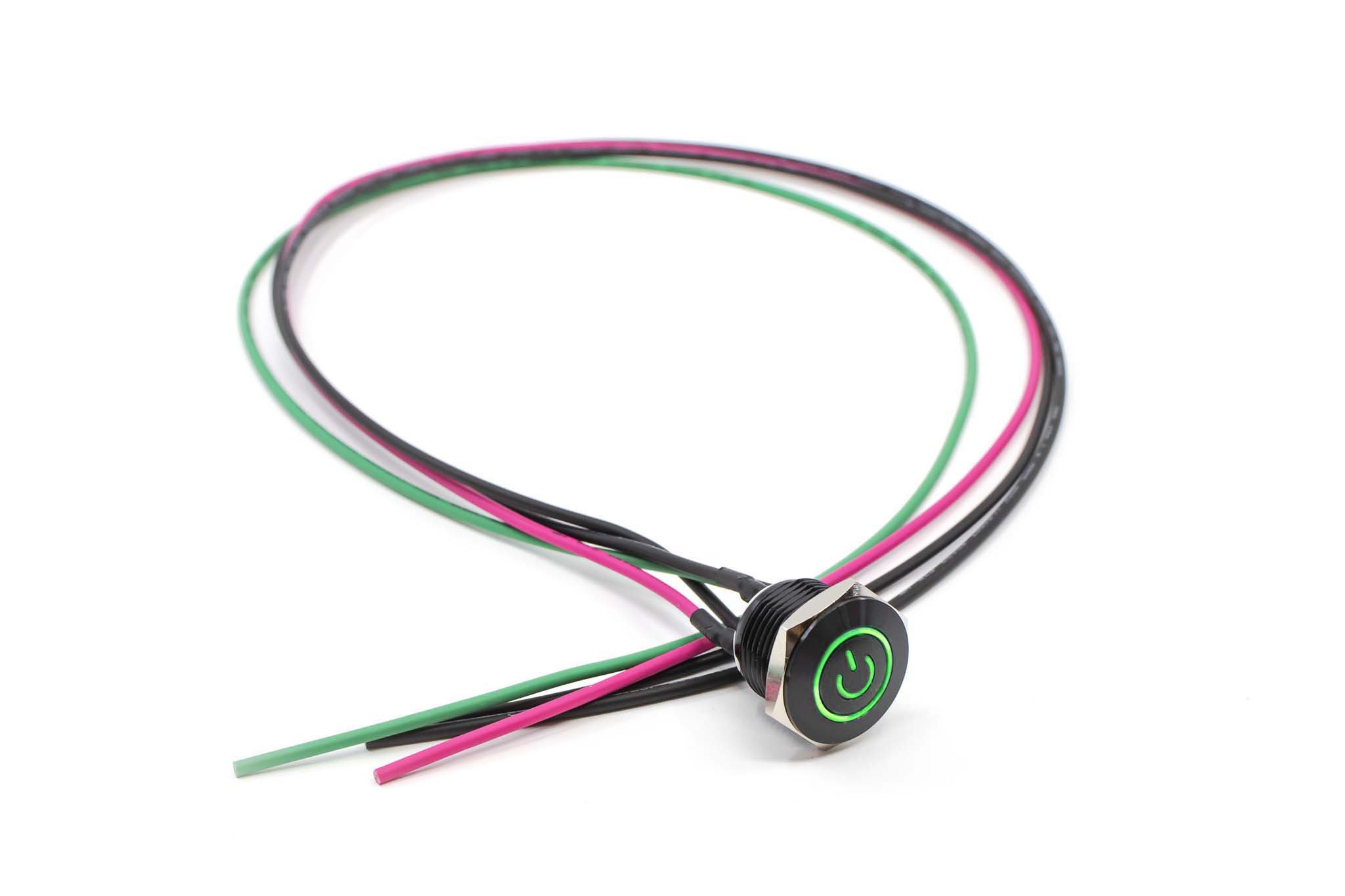

Solder lug termination or wire leads 500mm long

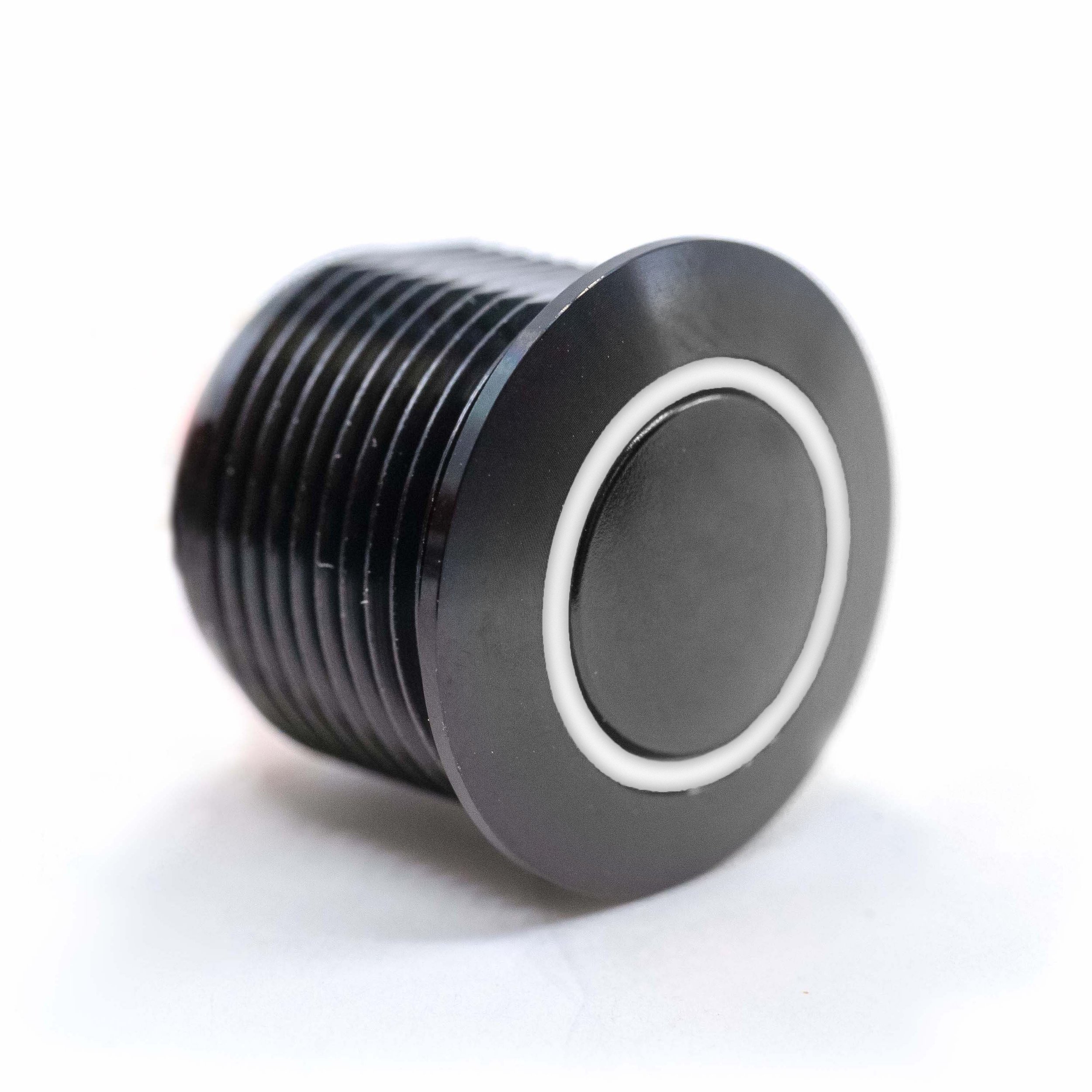

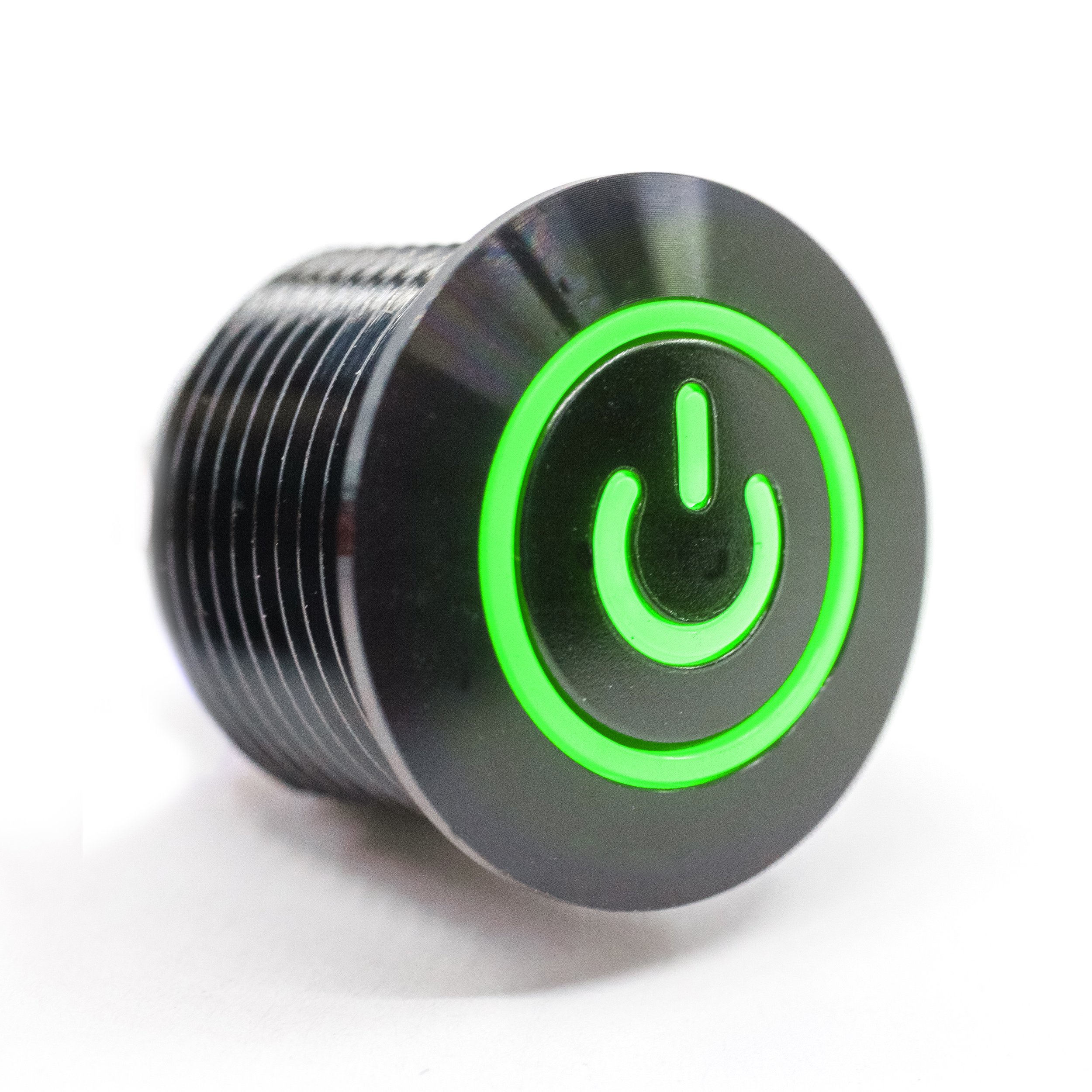

Ring or power symbol illumination options
SPST, Off-(On) functionality
Refer to Detail Specs for PVA6L latching pushbuttons
Datasheet
The PVA6 Series illuminated anti-vandal switch offers a long life expectancy, dust and water resistance to an IP67 rating, and ring or power symbol illumination. This tamperproof pushbutton switch has a 16mm panel cutout size. Additional options include a high, high flat or rounded bezel option and your choice of a solder lug or wire lead termination. The wire leads are 500mm long.
The PVA6 Series illuminated anti-vandal switches have electrical ratings of 2A of 36 VDC, mechanical life expectancies up to a million cycles, and they operate in temperatures ranging from -20°C to 70°C. Common applications for the PVA6 Series illuminated anti-vandal switch include:
Audio/visual equipment
Security devices
Industrial control panels
Ticket kiosks
Electrical houseware appliances
Medical equipment
Other devices that require a tamper-resistant design
FEATURES
16mm panel cutout size
IP67 rated for dust and moisture protection
Solder lug termination or wire leads 500mm long
Ring or power symbol illumination options
SPST, Off-(On) functionality
Refer to Detail Specs for PVA6L latching pushbuttons
Datasheet
