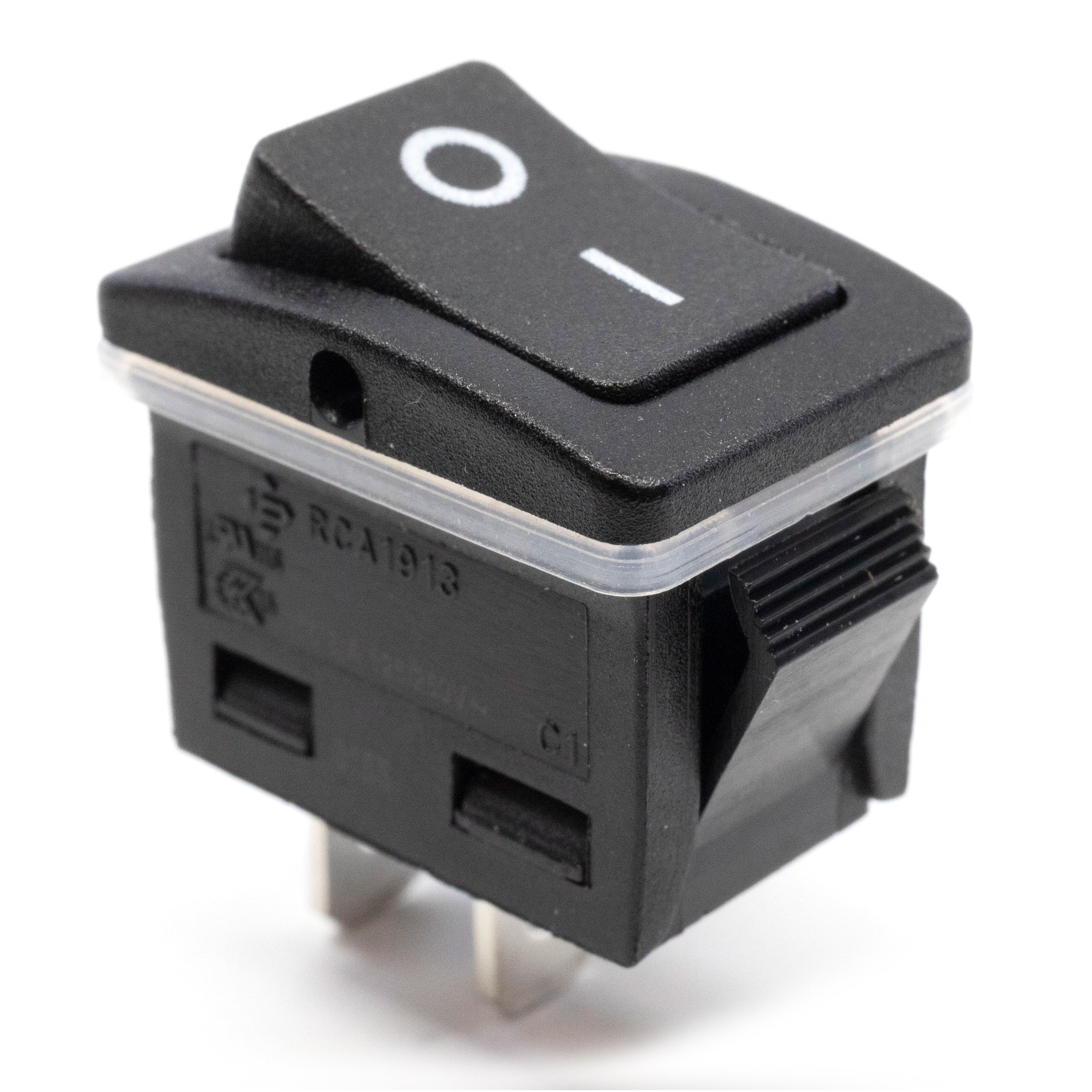

RCA1913 Series Sealed, Power Rocker Switch

• IP68 rated*

• 19.2mm x 13mm panel cutout

• Electrical Rating options:

  • 16(8)A, 125/250VAC; UL

  • 10(4)A, 125/250VAC; UL

  • 16A, 30VDC; UL

• SPST or SPDT circuit; 2 or 3 position latching function

• Quick connect, solder, PC pin, PC pin right angle, or wire leads

• Housing and actuator color options;  Actuator marking options

• *IP rated seal to the panel depends on application and may require additional measures (e.g custom gasket, silicon or epoxy sealant).

• Series Name RCA1913

• Packaging Bulk

• Current Rating 16A

• Voltage Rating 125VAC

• Circuit SPST

• Function On-Off

• Mounting Type Panel Mount, Snap-In

• Termination Type Quick Connect - 0.187

• Actuator Type Concave (Curved)

• Actuator Color Black

• Illumination Style Non-illuminated

• Illumination Color Non-illuminated

• Marking I/O Vertical

• Ingress Protection IP68

• Panel Cutout Dimensions Rectangular - 19.2mm x 13mm

• Operating Temperature 0°C to 55°C
