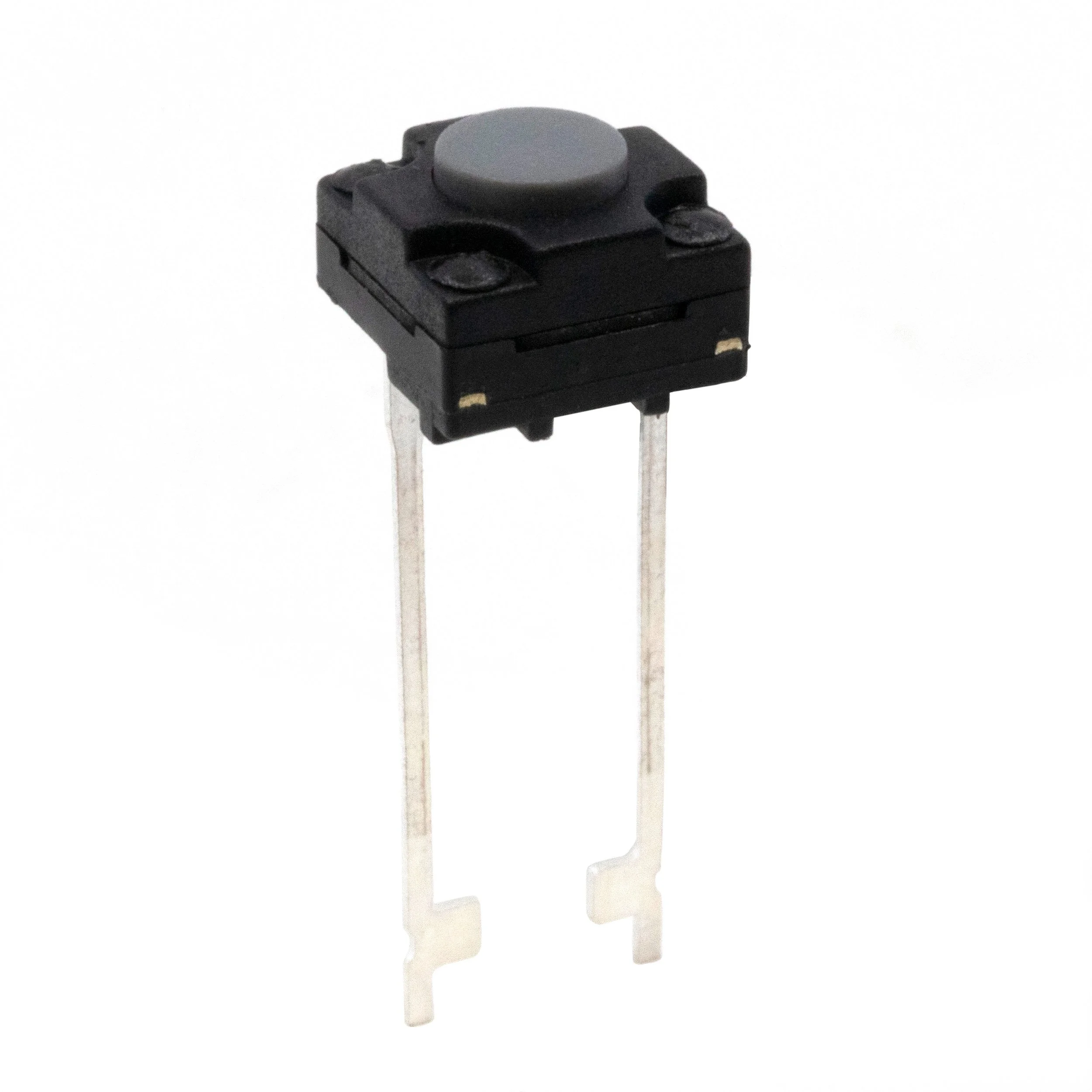

TL6059 Series Sealed, Through Hole, Radial Lead Tactile Switch

$0.00

IP67 rated
Through hole (THT) mounting design
Radial lead packaging
6.00mm x 6.00mm outline
100gf, 160gf or 200gf operating force
Actuator height options
Life cycles: 1,000,000 cycles (100gf); 100,000 cycles (160gf, 200gf)
Silver contact material
-30°C to 85°C operating temperature
50mA @ 12VDC
SPST-NO; Off-(On)

IP67 rated
Through hole (THT) mounting design
Radial lead packaging
6.00mm x 6.00mm outline
100gf, 160gf or 200gf operating force
Actuator height options
Life cycles: 1,000,000 cycles (100gf); 100,000 cycles (160gf, 200gf)
Silver contact material
-30°C to 85°C operating temperature
50mA @ 12VDC
SPST-NO; Off-(On)
